PWESD-5VSDE ESD 防护器件宣传页

产品概述

PWESD-5VSDE a 5.0V bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making his device an ideal solution for protecting voltage sensitive high-speed data lines. The PWESD-5VSDE has a low capacitance with a typical value at 0.7pF,and complies with the IEC61000-4-2(ESD) standard with ±30kV air and ±30kV contact discharge. It is assembled into a leadfree SOD-323 package. The small size, low capacitance and high ESD surge protection make PWESD-5VSDE an idea choice to protect cell phone, wireless systems, and communication equipment.

主要特性

· Working Voltage 5.0V

· Ultra Low Capacitance 0.7 pF

· Low leakage current: nA Level

· IEC 61000-4-2 (ESD Air): ±30kV

· IEC 61000-4-2 (ESDContact): ±30kV

· IEC61000-4-5(Lightning 8/20μS): 18A

典型应用

· High- speed data lines

· Smart phones

· USB Ports

· Wireless Systems

· Ethernet 10/100/1000 Base T

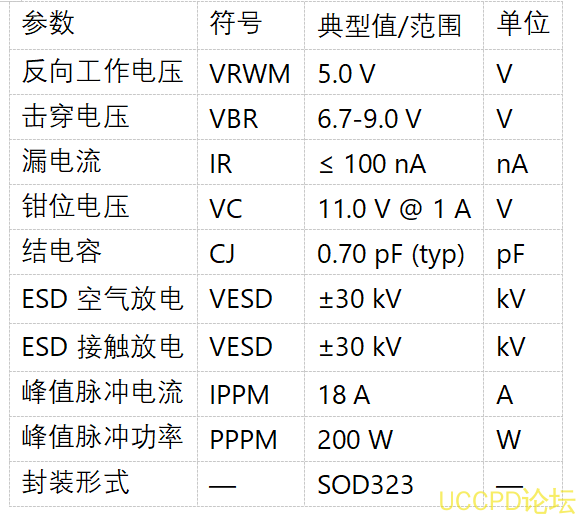

关键参数
