PWESD-5VSDF ESD 防护器件宣传页

产品概述

Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a ultra-small and flat lead SOD523 plastic package designed to protect one signal line from the damage caused by ESD and other transients.

主要特性

· Reverse stand-off voltage: 5.0V Max

· Ultra Low Capacitance 0.3pF

· Low leakage current: nA Level

· IEC 61000-4-2 (ESD Air): ±30kV

· IEC 61000-4-2 (ESDContact): ±30kV

· IEC61000-4-5(Lightning 8/20μS): 5.5A

典型应用

· High- speed data lines

· Smart phones

· USB Ports

· Wireless Systems

· Ethernet 10/100/1000 Base T

· Computers and peripherals

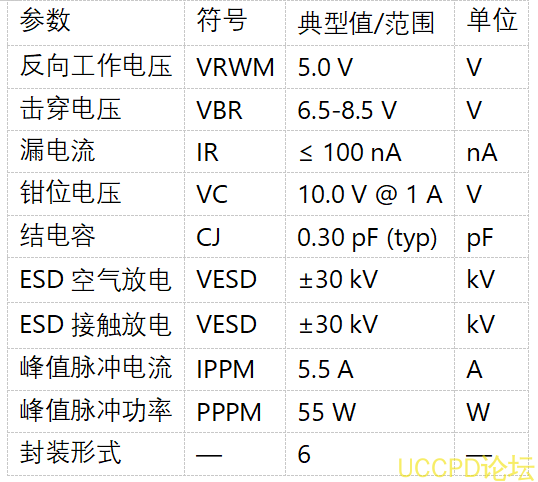

关键参数
