PWESD-5VSDD ESD 防护器件宣传页

产品概述

The PWESD-5VSDD is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time , make these parts ideal for ESD protection on designs where board space is at a premium

主要特性

· Low Capacitance: 10 pF(Typ)

· Reverse stand-off voltage: 5V Max

· Low leakage current: nA Level

· Low Clamping Voltage

· Response time is typically < 1 ns

· IEC61000−4−2 Level 4 ESD Protection

典型应用

· Cell phones

· Audio equipment

· Portable devices

· Digital cameras

· Power supplies

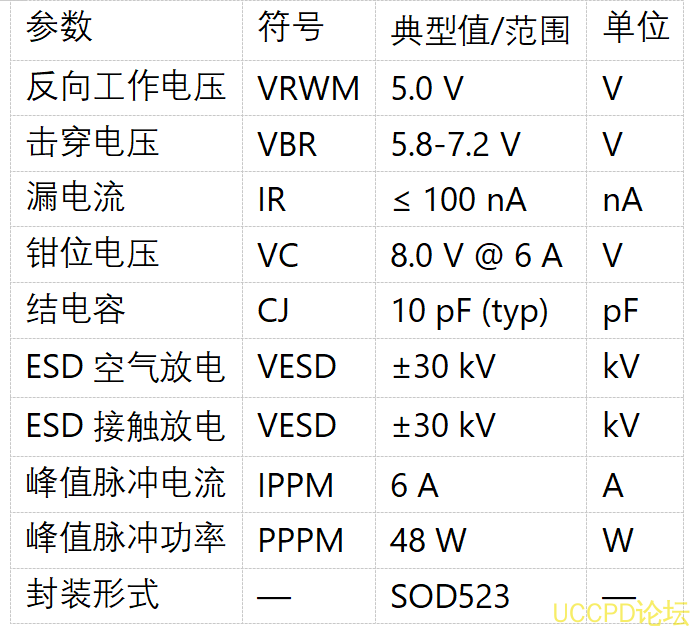

关键参数
