PWESD-7VSDA ESD 防护器件宣传页

产品概述

The PWESD-7VSDA is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time , make these parts ideal for ESD protection on designs where board space is at a premium.

主要特性

· Bidirectional ESD protection of one line

· Reverse stand-off voltage: 7.0V Max

· Low leakage current: nA Level

· Response time is typically < 1 ns

· Complies with following standards: IEC 61000-4-2 (ESD) immunity test Air discharge: ±30KV,

· RoHS Compliant

典型应用

· Cell Phone Handsets and Accessories

· Microprocessor based equipment

· Personal Digital Assistants (PDA’s)

· Notebooks, Desktops, and Servers

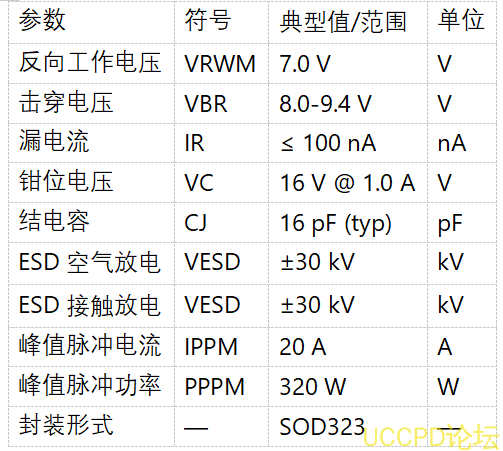

关键参数
