PWESD-5VSSC ESD 防护器件宣传页

产品概述

These surge protection diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium.

主要特性

· Working Voltage: 5.0V

· Response time is typically < 1 ns

· Low leakage current: nA Level

· IEC 61000-4-2 (ESD Air): ±30kV

· IEC 61000-4-2 (ESDContact): ±30kV

· IEC61000-4-5(Lightning 8/20μS): 25A

典型应用

· Power lines

· Microprocessor based equipment

· Personal Digital Assistants (PDA’s)

· Notebooks, Desktops, and Servers

· Cell phone Handsets and Accessories

· Portable Electronics

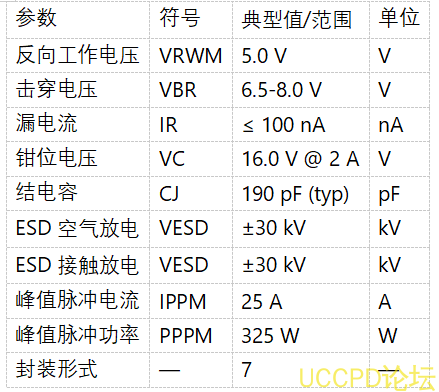

关键参数
