PWESD-24VSDA ESD 防护器件宣传页

产品概述

These surge protection diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium.

主要特性

· Low Capacitance 8.0 pF(Typ)

· Reverse stand-off voltage: 24V Max

· Low leakage current: nA Level

· Response time is typically < 1 ns

· IEC61000−4−2 Level 4 ESD Protection

· RoHS compliant

典型应用

· Cell Phone Handsets and Accessories

· Microprocessor based equipment

· Personal Digital Assistants (PDA’s)

· Notebooks, Desktops, and Servers

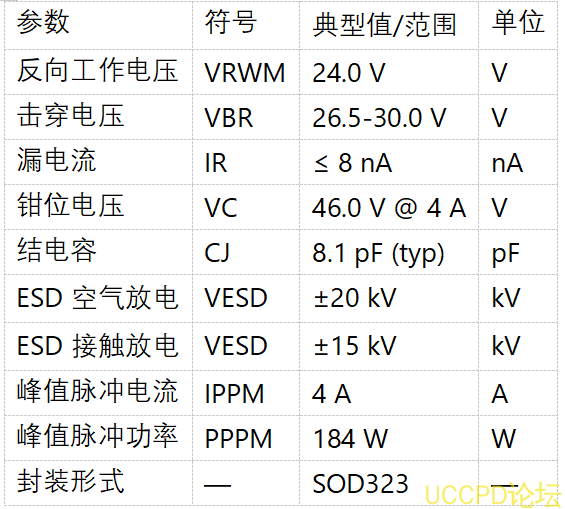

关键参数
